I built two keyboards over the last year!

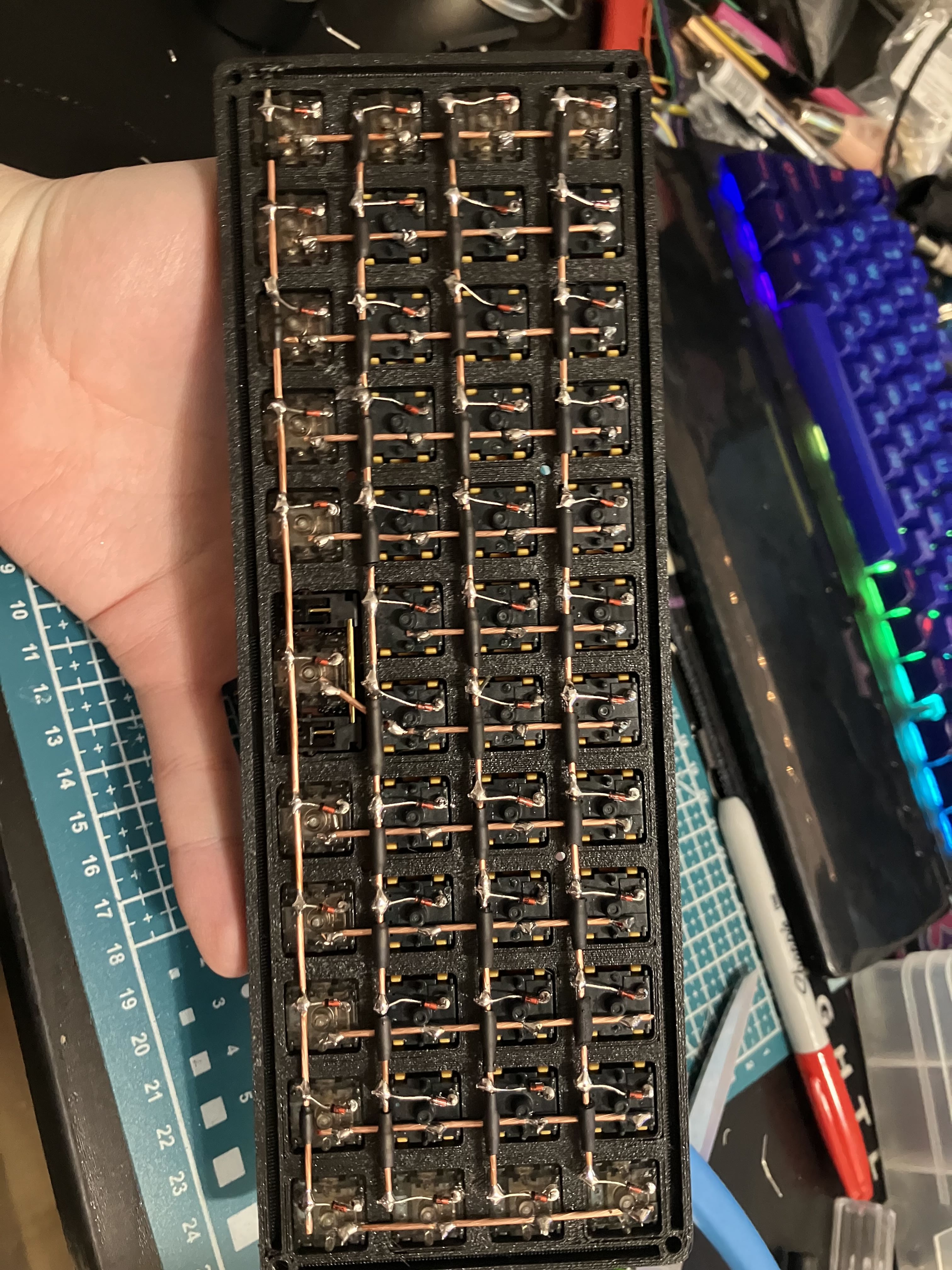

Handwired
Design: https://www.printables.com/model/347534-void40-a-40-ortholinear-keyboard
Inspired by a video sent to me by a friend, "Building a Split USB-C Handwired Keyboard" by Joe Scotto, I started initially with a 3x3 macropad in the same style as Joe Scotto.

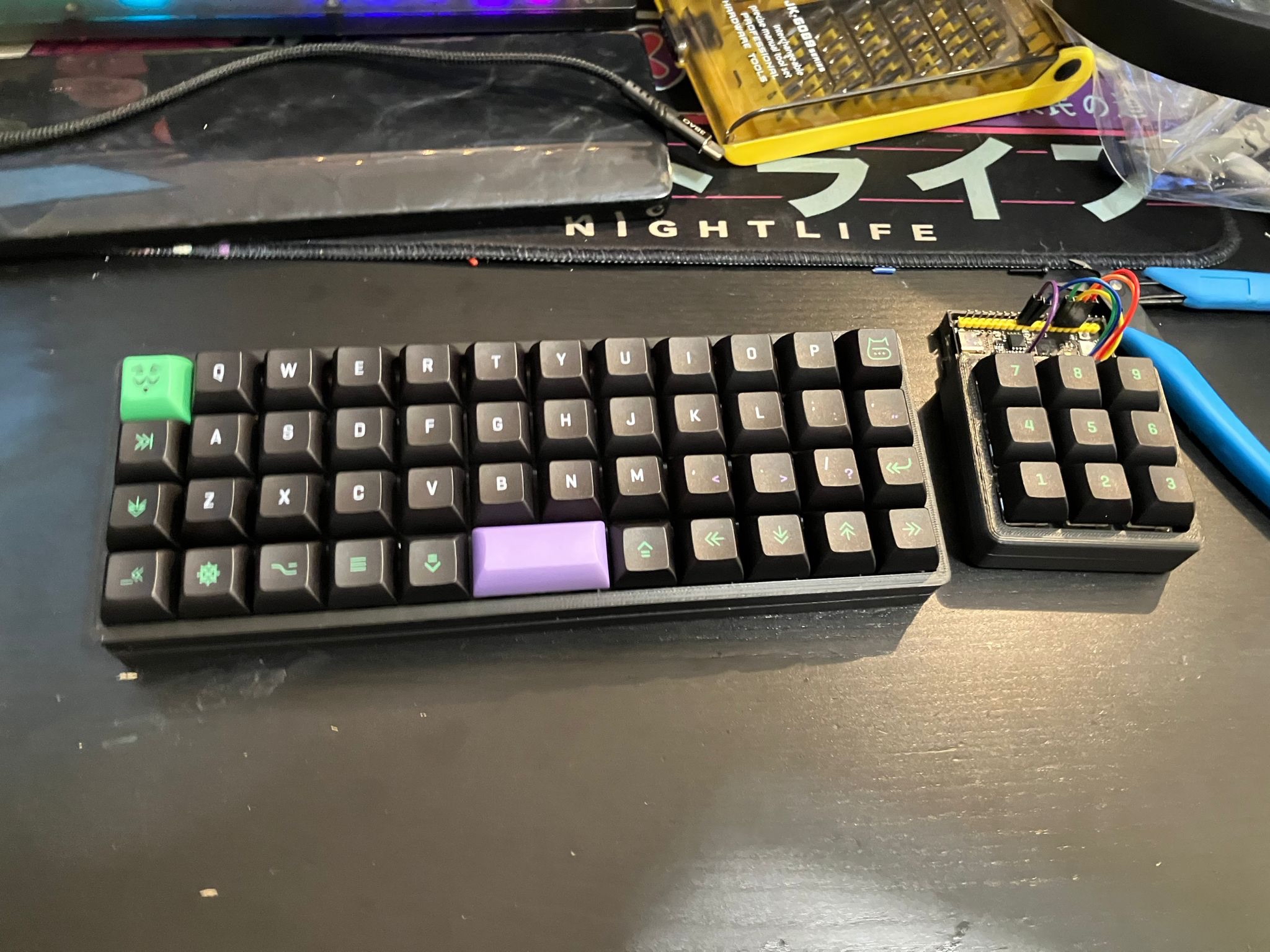

I moved onto a Planck-like shortly afterwards, initially I was using a large RP2040 devboard, but I settled on an RP2040 Zero (not pictured!).
Keyswitches:
- Inner: Matrix Lab FFFF (Tactile)
- Outer: Nightwalker Glow-in-the-Dark Nightcall (Silent Linear)
Stabilizers were hand-lubricated.
Keycaps were KAT Cyberspace.
Sofle RGB
Case design: https://www.thingiverse.com/thing:5407420 PCB vendor: https://pandakb.com/products/pcb-kit/sofle-rgb-mx-pcb-kit/ (I did not use the kit!) Keyboard design: https://josefadamcik.github.io/SofleKeyboard/ (Sofle RGB)
Keyswitches:
- Turquoise Tealios (Linears) for alphas
- Zealio V2 (Tactile) for all other keys
Keycaps are KAT Cyberspace.
I spent an awful lot of time debugging issues that were fundamentally my own fault for following the build guide wrong in one way or another, but I feel like it turned out very pretty.
[
]
